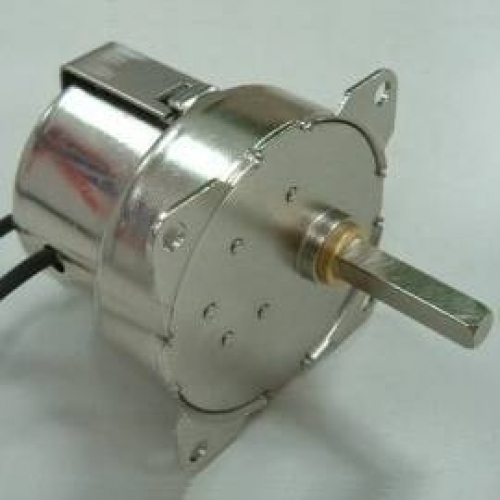

相位同步馬達 SD-94
【流覽次數287 】
產品詳情
相位同步馬達 SD-94
馬達規格
Rated voltage: 24, 100, 110-120, 220-240 V
Power frequency: 50/60 Hz
Input power: 3~6W
Number of Poles: 12P
Rotor speed: 500- 600 RPM
Output RPM: From 1 to 99 RPM
Torque: 88 kgf/cm at 1 RPM
Rotation: CW, CCW, Reversing, Reversible, Bi-direction
Operating temperature: -10o ~ 60o C
Insulation strength: AC1500 V-1Min
Insulation class: A, B class
Lead wire: 1007XAWG#22 x 200m/m
Input power: 5~6W
Special Features:
SECC cover plate
Nickel Steel Gears and Medium Carbon Steel Gears
Hi-Tech magnetic material-MQ Magnet (Nd-Fe-B)
Low noise
Low operating temperature
High torque
