LR9540 麗台 SiRF Star III GPS模組 GPS接收器模組 全新品

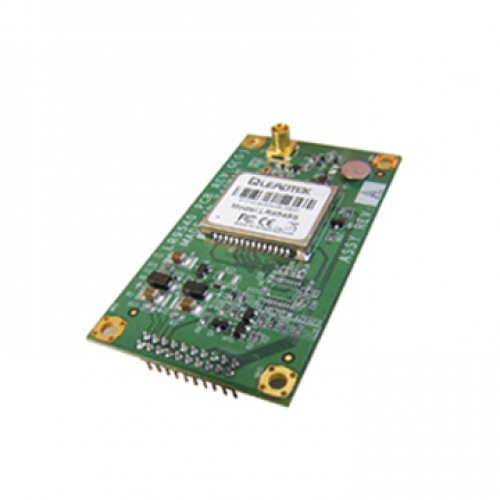

The LR9540 module is high performance, low power, 20-channel TTL level GPS receiver, based on the SiRFStarIII/LP single chipset technology while providing fast time-to-first-fix. Its far reaching capability meets the sensitivity requirements of car navigation as well as other location-based applications.
LR9540 is designed to allow quick and easy integration into GPS-related applications, especially for compact size devices, such as:
-Fleet Management /Asset Tracking.
-AVL and Location-Based Services.

Features
Hardware and Software
-Based on the high performance features of the SiRF Star III low power single chipset.
-Dimensions: 40.64 x 71.12 x 1.4 mm (1.6 x 2.8 x 0.5 inch)
-RoHS compliant (lead-free)

Performance
-Cold/Warm/Hot Start Time: 42 / 38 / 1 sec. at open sky and stationary.
-Reacquisition Time: 0.1 second

Interface
-DIP type pitch 2.0mm- 2x10 pin header.
-Protocol: NMEA-0183 compliant.
-Baud Rate: 4800 bps.
-Right angle MCX (RMCX) RF Connector.
